Aseeder Tungsten Carbide TC Radial Bearing Good Compressive Properties

Ask Lasest Price
Brand Name :	ASEEDER
Model Number :	BEARING-0123
Certification :	ISO9001,API,
Price :	Negotatioin
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 pcs per month
Delivery Time :	5-8 weeks depend on quantity

Add to Cart

Product Details
Company Profile

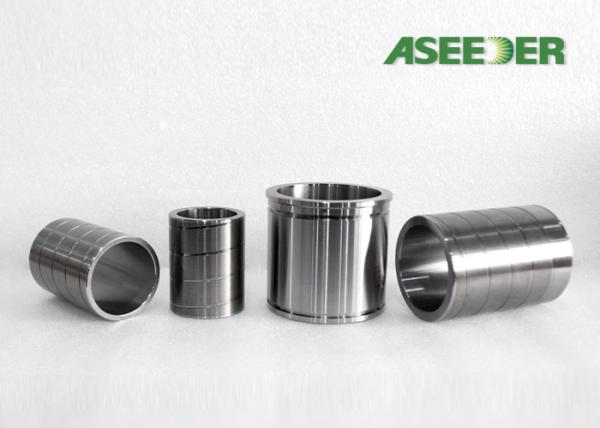

Aseeder Tungsten Carbide TC Radial Bearing Good Compressive Properties

Aseeder TC Radial Bearing cover more depending upon tile configuration and placement

1. Tungsten Carbide Bearing Bushings have the characters of high wear resistance, high corrosion resistance and good compressive properties.

2. It's widely used in petrochemical industries and other industries which call for high properties of the bearing bushings or shaft sleeves.

3. Tungsten carbide BEARING is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion.

Aseeder Tungsten Carbide TC Radial Bearing Good Compressive Properties

Grades, Properties and Recommended Applications of Cemented Carbide
SEED Carbide have R&D Dept can help customer to develop new grade as per special application.

Aseeder Grade	Co (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
ZY11-C	9.0-11.0	14.33-14.53	88.6-90.2	2800
ZY15-C	15.5-16.0	13.84-14.04	85.6-87.2	2800
ZY15X	14.7-15.3	13.85-14.15	≥89	3000
ZY20	18.7-19.1	13.55-13.75	≥83.8	2800
ZY06X	5.5-6.5	14.80-15.05	91.5-93.5	2800
ZY08	7.5-8.5	14.65-14.85	≥89.5	2500
ZY09	8.5-9.5	14.50-14.70	≥89	2800
ZY10X	9.5-10.5	14.30-14.60	90.5-92.5	3000

FACTORY INFORMATION:

Seed Technologies Corp., LTD., located in Zhuzhou (China), is a high-tech developer, manufacturer, and distributor of superior wear resistant parts, tool assembly and equipment for Oil and gas, Areospace, Valve and Pumps industry..

Aseeder Corporation was invested by Seed as a Houston based company dedicated for sales and customer support in north America market.

Aseeder Tungsten Carbide TC Radial Bearing Good Compressive Properties

Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture

Aseeder Tungsten Carbide TC Radial Bearing Good Compressive Properties

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.

Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
