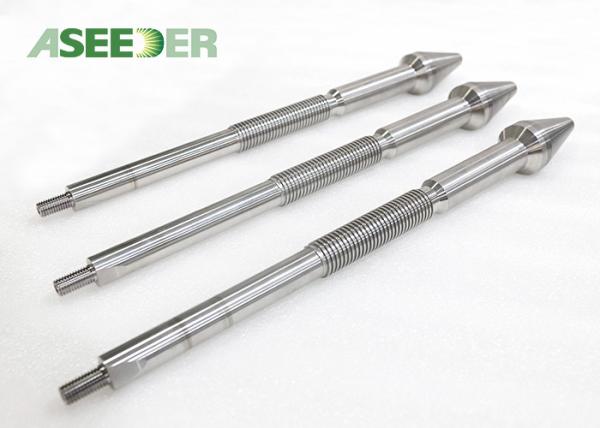

Corrosion Resistance Carbide Choke Stem And Seat High Machining Accuracy

Good wear / corrosion resistance Carbide Valve Choke Stem for Oil Christmas Trees and Wellhead

1. Tungsten carbide tip in conjunction with stainless steel stem provides optimum wear resistance in erosive conditions.
2. Carbide wear parts for oil and gas industry, wellhead assembly (eg. Christmas tree, multistage choke manifold)
3. Customized tunsgten carbide choke valve stem and seat according to drawings.

Product Parameters

TYPE	Dimension (mm)					Material Recommended
TYPE	D	d1	d	L	α°	Material Recommended
Valve Core	52-80	40-70	10-40	75-120	10-45	Tungsten+Cobalt
TYPE	Dimension (mm)				Material Recommended
TYPE	D		d	L	Material Recommended
Valve Seat	75-100		55-70	20-80	Tungsten+Cobalt

Corrosion Resistance Carbide Choke Stem And Seat High Machining Accuracy

Corrosion Resistance Carbide Choke Stem And Seat High Machining Accuracy

1. Size : Usually according to customer's requirement
2. High precision
3. ISO

Tungsten Carbide Materials Grade As Below:

Aseeder Grade	Co (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
ZY11-C	9.0-11.0	14.33-14.53	88.6-90.2	2800
ZY15-C	15.5-16.0	13.84-14.04	85.6-87.2	2800
ZY15X	14.7-15.3	13.85-14.15	≥89	3000
ZY20	18.7-19.1	13.55-13.75	≥83.8	2800
ZY06X	5.5-6.5	14.80-15.05	91.5-93.5	2800
ZY08	7.5-8.5	14.65-14.85	≥89.5	2500
ZY09	8.5-9.5	14.50-14.70	≥89	2800
ZY10X	9.5-10.5	14.30-14.60	90.5-92.5	3000

Features:

1. Use 100% tungsten carbide raw material

2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory’s offer
8. Strict products quality inspection

PACKING WAY :
1. Packaging way: Foam paper + carton box /wooden case
2. Shipping way : By DHL,UPS,Fedex ,TNT express , By air , By sea

OUR SERVICE
1. Customized material grade and production according to customer's requirement
2. Low MOQ
3. Free sample availble
4. Professional international transportation system to make sure high cost-effective ,safety service.
