Tungsten Carbide Drill Bit Nozzle For Chemical Industry 14.33-14.53 G/Cm3

Ask Lasest Price
Brand Name :	ASEEDER
Model Number :	Drill Bit Nozzle
Certification :	ISO,TDS,API, ASP9100
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	30000pcs per months
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

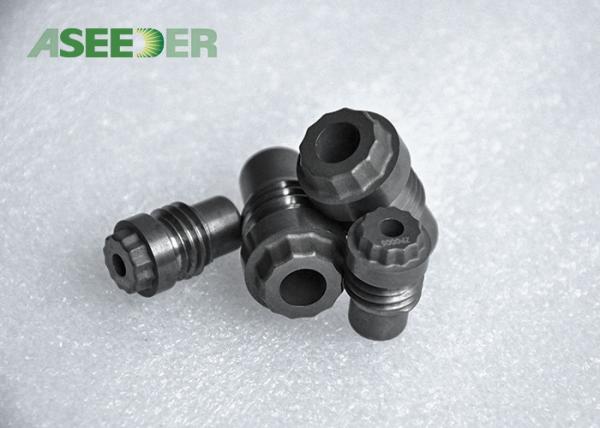

Tungsten Carbide Drill Bit Nozzle For Chemical Industry 14.33-14.53 G/Cm3

Tungsten Carbide Drill Bit Nozzle For Chemical Industry 14.33-14.53 G/Cm3

Drill Bit Nozzle pplication

Drill Bit Nozzle is mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc. Aseeder tungsten carbide nozzles are mainly for Oil Drilling Tools.

Drill Bit Nozzle Features:

Aseeder Cemented tungsten carbide spary nozzle of oil field drill bit parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

Drill Bit Nozzle Benefit

High efficiency for cooling, cleaning and cuttings evacuation, extend the drilling bit lift.
When tightening nozzle reduced pop-up force.

Recommended tungsten carbide grade list

Grade	Co (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
ZY11-C	9.0-11.0	14.33-14.53	88.6-90.2	2800
ZY15-C	15.5-16.0	13.84-14.04	85.6-87.2	2800
ZY15X	14.7-15.3	13.85-14.15	≥89	3000
ZY20	18.7-19.1	13.55-13.75	≥83.8	2800
ZY06X	5.5-6.5	14.80-15.05	91.5-93.5	2800
ZY08	7.5-8.5	14.65-14.85	≥89.5	2500
ZY09	8.5-9.5	14.50-14.70	≥89	2800
ZY10X	9.5-10.5	14.30-14.60	90.5-92.5	3000

Drill Bit Nozzle Advantage::

 High stability, long lifespan circle.
 Customized as your requirements.
 Approved factory for oil and natural gas industry TOP10 customers.
 With ASP9100 certificate , API certificate, ISO9001:2015
 With a Special Thread Processing Workshop

Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions

Drill Bit Nozzle Details

Tungsten Carbide Drill Bit Nozzle For Chemical Industry 14.33-14.53 G/Cm3
