High Hardness Tungsten Carbide Nozzle / Petroleum Oil Spray Nozzle

Ask Lasest Price
Brand Name :	ASEEDER
Model Number :	AN-027
Certification :	ISO,TDS,API, ASP9100
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000pcs per months
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

High Hardness Tungsten Carbide Nozzle / Petroleum Oil Spray Nozzle

High Hardness Tungsten Carbide Nozzle / Petroleum Oil Spray Nozzle

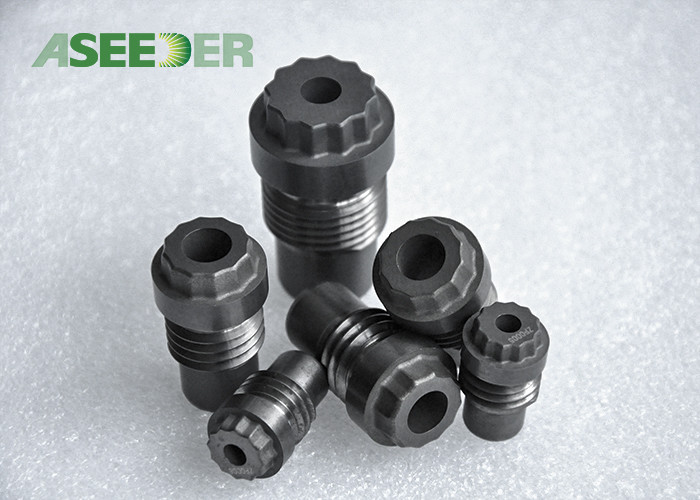

Tungsten Carbide Nozzle application

The Tungsten Carbide Nozzle will be used mainly to PDC drill bits and cone roller bits for flushing, cooling and lubricating drill bit tips and cleaning stone chips in the well bottom with drilling liquid in the working conditions of high pressure,vibration,sand and slurry impacting during oil and natural gas prospecting.

Recommended tungsten carbide grade list

Grade	Co (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
ZY15X	14.7-15.3	13.85-14.15	≥89	3000
ZY20	18.7-19.1	13.55-13.75	≥83.8	2800
ZY06X	5.5-6.5	14.80-15.05	91.5-93.5	2800
ZY08	7.5-8.5	14.65-14.85	≥89.5	2500
ZY09	8.5-9.5	14.50-14.70	≥89	2800
ZY10X	9.5-10.5	14.30-14.60	90.5-92.5	3000

Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture

About US

Seed Technologies Corp., LTD., located in Zhuzhou (China), is a high-tech developer, manufacturer, and

distributor of superior wear resistant parts, tool assembly and equipment for Oil and gas, Areospace, Valve

and Pumps industry.

Aseeder Corporation was invested by Seed as a Houston based company dedicated for sales and customer

support in north America market.
