Cemented Tungsten Carbide Other Wear Parts For Oil And Gas Industy High Precision

Ask Lasest Price
Brand Name :	ASEEDER
Model Number :	AN-018
Certification :	ISO,TDS,API, ASP9100
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000pcs per months
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

Cemented Tungsten Carbide Other Wear Parts For Oil And Gas Industy High Precision

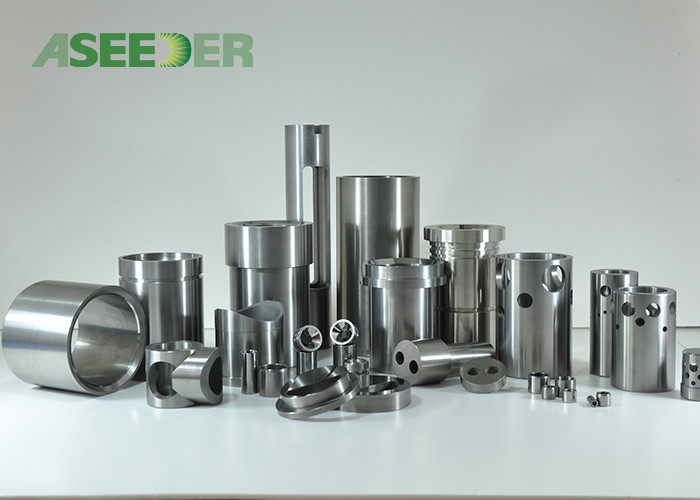

ASEEDER's Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry

Applications :

We are manufacturing Cemented Tungsten Carbide Wear Parts for use Oil & Gas Industry. Aseeder Cemented tungsten carbide wear parts are available in a wide range of styles and size combinations for Petroleum industry.

Features:

Aseeder Cemented tungsten carbide wear parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

Recommended tungsten carbide grade list

Grade	Co (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
ZY11-C	9.0-11.0	14.33-14.53	88.6-90.2	2800
ZY15-C	15.5-16.0	13.84-14.04	85.6-87.2	2800
ZY15X	14.7-15.3	13.85-14.15	≥89	3000
ZY20	18.7-19.1	13.55-13.75	≥83.8	2800
ZY06X	5.5-6.5	14.80-15.05	91.5-93.5	2800
ZY08	7.5-8.5	14.65-14.85	≥89.5	2500
ZY09	8.5-9.5	14.50-14.70	≥89	2800
ZY10X	9.5-10.5	14.30-14.60	90.5-92.5	3000

Advantage::

 High stability, long lifespan circle.
 Customized as your requirements.
 Approved factory for oil and gas industry TOP10 customers.
 With ASP9100 certificate , API certificate, ISO9001:2015
 With a Special Thread Processing Workshop

Package :

Each unit will be packed into a plastic cylinder with foam, then put on carton box.

Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.

Cemented Tungsten Carbide Other Wear Parts For Oil And Gas Industy High Precision

Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
