Stable Performance Tungsten Carbide Valve Components Valve Assembly HRA 90 Degree

Ask Lasest Price
Brand Name :	ASEEDER
Model Number :	Choke Stem Assembly-0223
Certification :	ISO,API
Price :	Negotation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	15tons per years
Delivery Time :	5-8 weeks depend on quantity

Add to Cart

Product Details
Company Profile

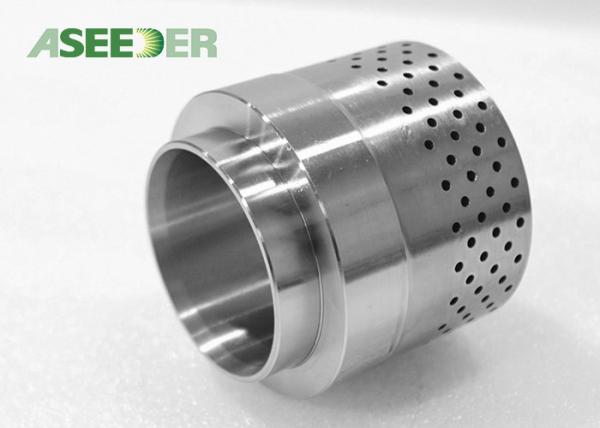

Stable Performance Tungsten Carbide Valve Components Valve Assembly HRA 90 Degree

Tungsten Carbide Valve Components Valve Assimbly for Flow Control

Tungsten Carbide Valve Components Valve Assimbly is made by the precision machining with the tungsten carbide materials (super hard alloy). The hardness reached over HRA 90 degree while the antibending degree reached over 2300N/mm, is mainly used in mining industry, petroleum industry, sandblasting gun industry, chemical industry, food, machinery, metallurgy, architecture and other industries for flushing, cooling and lubricating cleaning, etc. Application in the working conditions of high pressure, vibration, sand and slurry impacting during oil and natural gas prospecting. We are specilized on manufacturing Cemented tungsten carbide Tungsten Carbide Valves Assemblies fir oil and gas industry.

Tungsten Carbide Materials Grade As Below:

Aseeder Grade	Co (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
ZY11-C	9.0-11.0	14.33-14.53	88.6-90.2	2800
ZY15-C	15.5-16.0	13.84-14.04	85.6-87.2	2800
ZY15X	14.7-15.3	13.85-14.15	≥89	3000
ZY20	18.7-19.1	13.55-13.75	≥83.8	2800
ZY06X	5.5-6.5	14.80-15.05	91.5-93.5	2800
ZY08	7.5-8.5	14.65-14.85	≥89.5	2500
ZY09	8.5-9.5	14.50-14.70	≥89	2800
ZY10X	9.5-10.5	14.30-14.60	90.5-92.5	3000

Features:
1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory’s offer
8. Strict products quality inspection
