Hard Alloy Cross Goove Thread Nozzle / Strong Cemented Carbide Nozzle

Ask Lasest Price
Brand Name :	ASEEDER
Model Number :	AN-055
Certification :	ISO,TDS,API, ASP9100
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000pcs per months
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

Hard Alloy Cross Goove Thread Nozzle / Strong Cemented Carbide Nozzle

Hard Alloy Cross Goove Thread Nozzle / Strong Cemented Carbide Nozzle

tungsten carbide nozzle Introduction

Cemented tungsten carbide nozzle for sandblasting/water jet
Size dimension from 2mm to 400mm,available virgine material and recycling material
Type: sandblasting nozzle,painting nozzle, srill bit nozzle,long nozzle and various nonstandard industrial nozzle
OEM,customize base on drawing,more than 10 years' export experience and 20 years' manufacturing experience.
Grade application
YG8 Qualified for rough machining of cast iron,non-ferrous metal,nonmetal materials,drawing of steel,non-ferrous metal and pipes,various drills for geology use,tools for machine manufacture and wearing parts.
YG6X Qualified for machining of chilled cast iron,alloy cast iron,refractory steel and alloy steel.Also Qualified for the machining of common cast iron.
YG3X Qualified for fine turning and half-fine turning when cast iron,non-ferrous metal,alloys as well as non-alloy materials cutting consecutively.Can make wire drawing of steel and non-ferrous metal.Also qualified for sand-blasting nozzles.

Recommended tungsten carbide grade list

Grade	Co (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
ZY11-C	9.0-11.0	14.33-14.53	88.6-90.2	2800
ZY15-C	15.5-16.0	13.84-14.04	85.6-87.2	2800
ZY15X	14.7-15.3	13.85-14.15	≥89	3000
ZY20	18.7-19.1	13.55-13.75	≥83.8	2800
ZY06X	5.5-6.5	14.80-15.05	91.5-93.5	2800
ZY08	7.5-8.5	14.65-14.85	≥89.5	2500
ZY09	8.5-9.5	14.50-14.70	≥89	2800
ZY10X	9.5-10.5	14.30-14.60	90.5-92.5	3000

Hard Alloy Cross Goove Thread Nozzle / Strong Cemented Carbide Nozzle

Advantage::

 High stability, long lifespan circle.
 Customized as your requirements.
 Approved factory for oil and natural gas industry TOP10 customers.
 With ASP9100 certificate , API certificate, ISO9001:2015
 With a Special Thread Processing Workshop

Package :

Each unit will be packed into a plastic cylinder with foam, then put on carton box.

Hard Alloy Cross Goove Thread Nozzle / Strong Cemented Carbide Nozzle

Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.

Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series

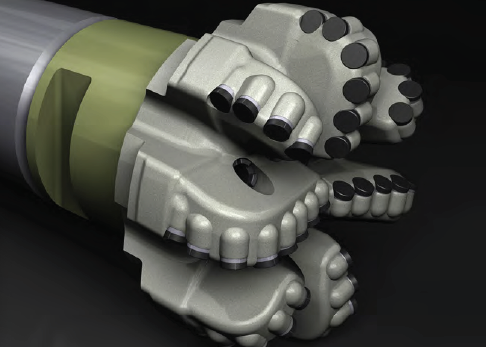

Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
